Bluesound was the first and most award-winning wireless hi-res multiroom system to let users play music in any and every room of their home. Choose music from your favorite streaming service or from a music library connected to your home network. Control where, at what volume, and when music plays with a free BluOS app for your smartphone, tablet, or desktop computer. Getting the kind of crisp and detailed sound that only an audiophile-grade system can deliver has never been easier. That’s Living HiFi.

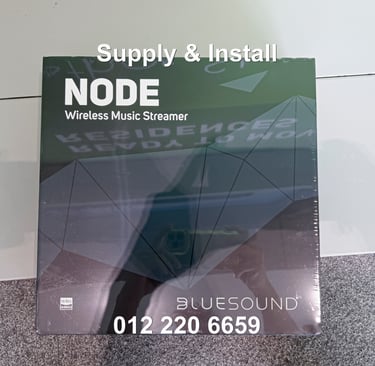

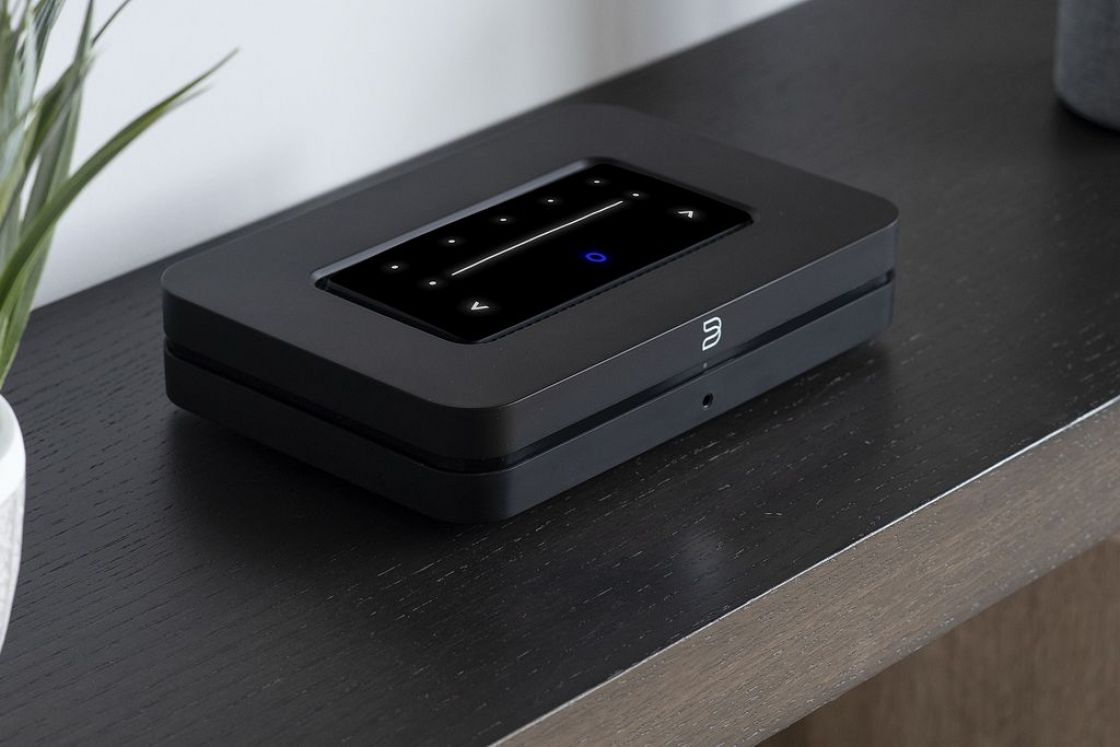

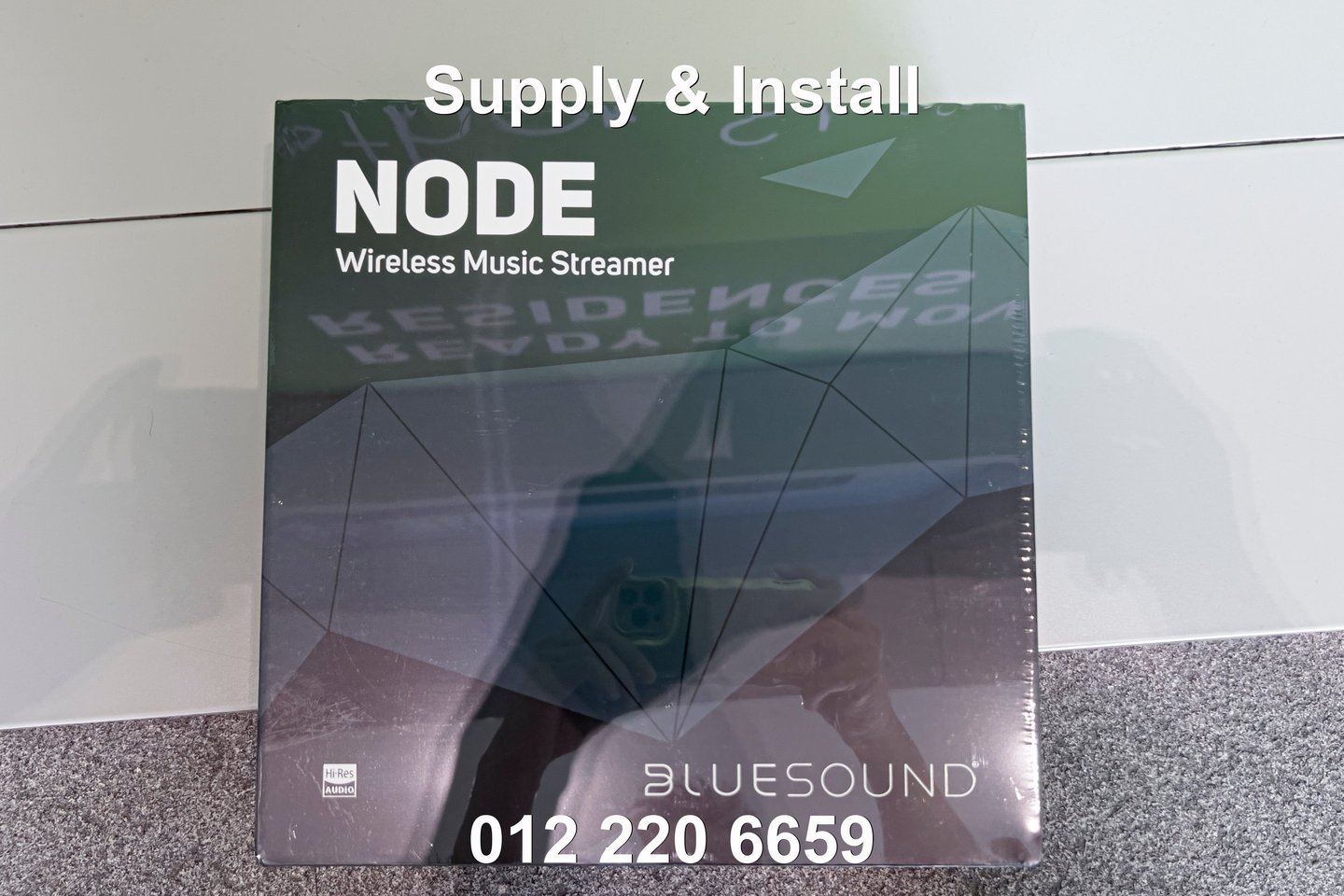

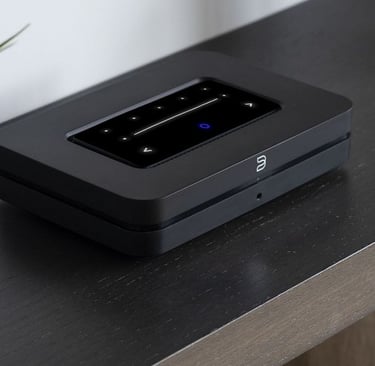

Bluesound NODE
The Bluesound NODE unlocks the world of hi-res music streaming and multi-room control utilizing ceiling speakers to create a modern addition blending in seamlessly to your space.
The Bluesound Node operates as a high-resolution network streamer, utilizing a premium 32-bit/384kHz differential DAC architecture. Running on the BluOS ecosystem, it acts as the centralized system controller. It supports native playback of high-resolution container formats (FLAC, MQA, WAV) and integrates flawlessly with commercial and consumer streaming platforms. For multi-zone architectures, the Node serves as a master clock synchronization source, guaranteeing sub-millisecond audio distribution across independent zones to eliminate acoustic echo bleed between adjacent spaces.
The NAD CI 980 is a highly efficient 8-channel (4 stereo zones) custom-installation amplifier utilizing a high-current switching power supply topology. Delivering a conservative, low-distortion rating of 50W per channel into 8 ohms (all channels driven simultaneously), it provides clean headroom to prevent signal clipping during prolonged background playback. Key engineering highlights include:
Global Input Routing: Distributes a single Node stereo stream across all 4 zones seamlessly without external patch cables.
Thermostatically Controlled Cooling: Safely operates in enclosed AV equipment racks without requiring external active exhaust fans.
Thermal Protection Circuits: Resilient against drop-outs or channel short circuits, ensuring 24/7 reliability.
The Ostom IC640T is a 6.5-inch coaxial architectural speaker engineered specifically for custom installation. It features an integrated transformer allowing for operation on standard low-impedance (8-ohm) systems or distributed high-voltage (100V) public address loops. It employs a toolless rapid-clamping mechanism to minimize ceiling stress and installation time during deployment.
The combination of the Bluesound Node, NAD CI 980, and Ostom IC640T creates an outstanding architectural system optimized specifically for continuous background music (BGM). It avoids the common mistakes of commercial audio—such as shrill highs, muddy bass, and volume hot spots—by prioritizing wide sonic dispersion and clean, low-distortion power.
Sound Quality
Ultra-Wide Conical Dispersion: The coaxial design of the Ostom IC640T creates a wide sound lobe. This means that as people walk around a room, they don't experience annoying volume drops or "dead zones" between speakers.
Non-Fatiguing Treble: Background systems run for 8–12 hours a day. The Bluesound Node's premium DAC paired with NAD's smooth amplification ensures that high frequencies (like cymbals or crisp vocals) never become harsh or piercing.
Articulate, Safe Mid-Bass: The 6.5-inch woofers are designed to give music a warm, full-bodied feel at low volumes. Because they don't produce aggressive sub-bass frequencies, they won't vibrate your drywall or cause muddy, booming echoes in ceiling cavities.
Mids & Vocal Legibility: Acoustic jazz, acoustic tracks, and vocals sound remarkably transparent. Even when played at a quiet whisper, lyrics remain completely intelligible rather than dissolving into background noise.
Wilayah AV Solutions is the premium authorized dealer for custom install Bluesound/BluOS multi room system. For more information, call 012 220 6659.

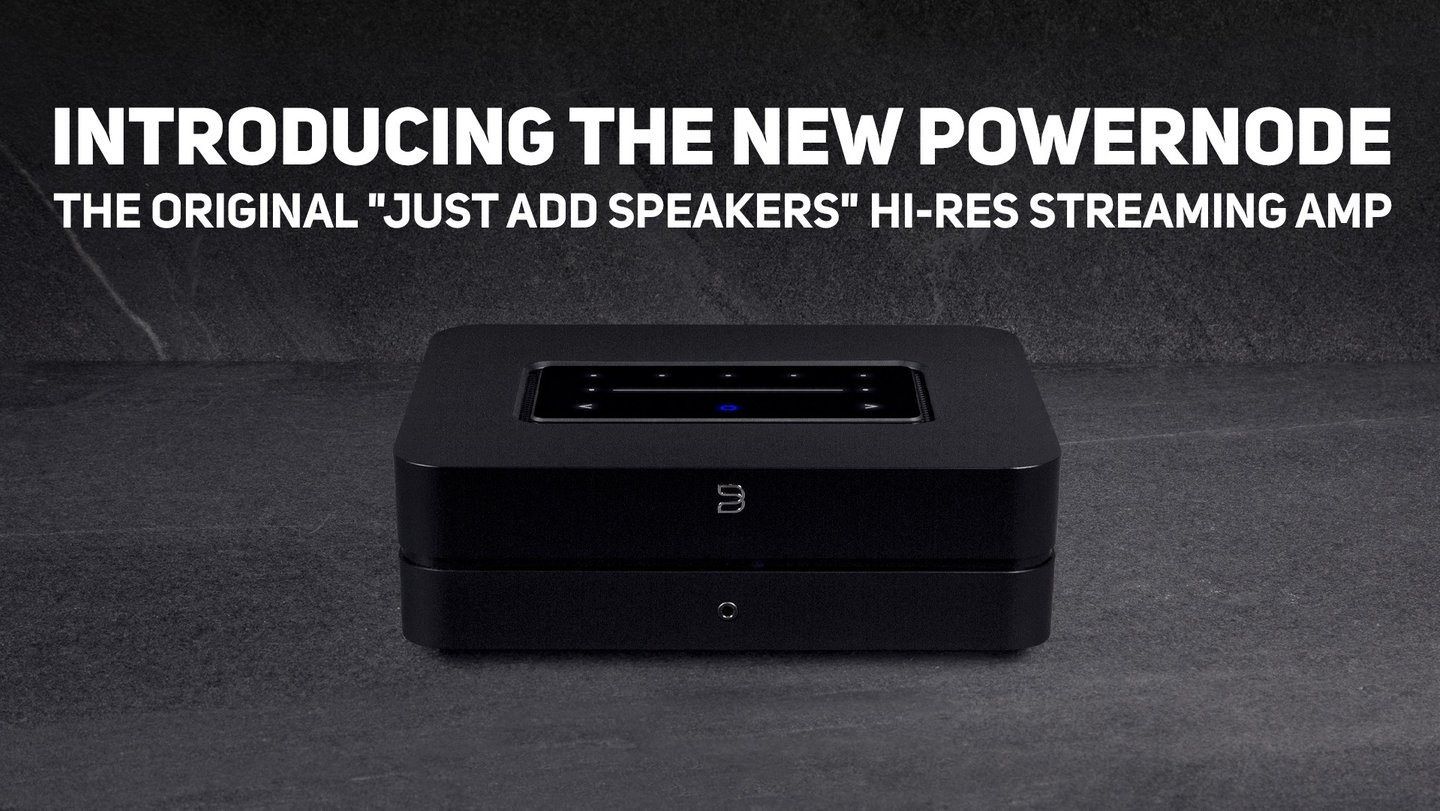

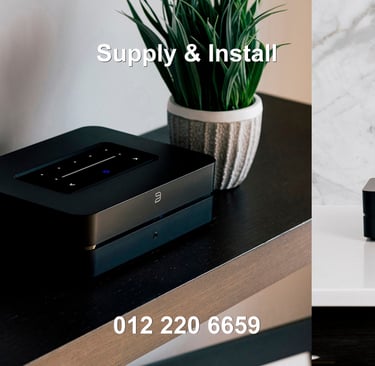

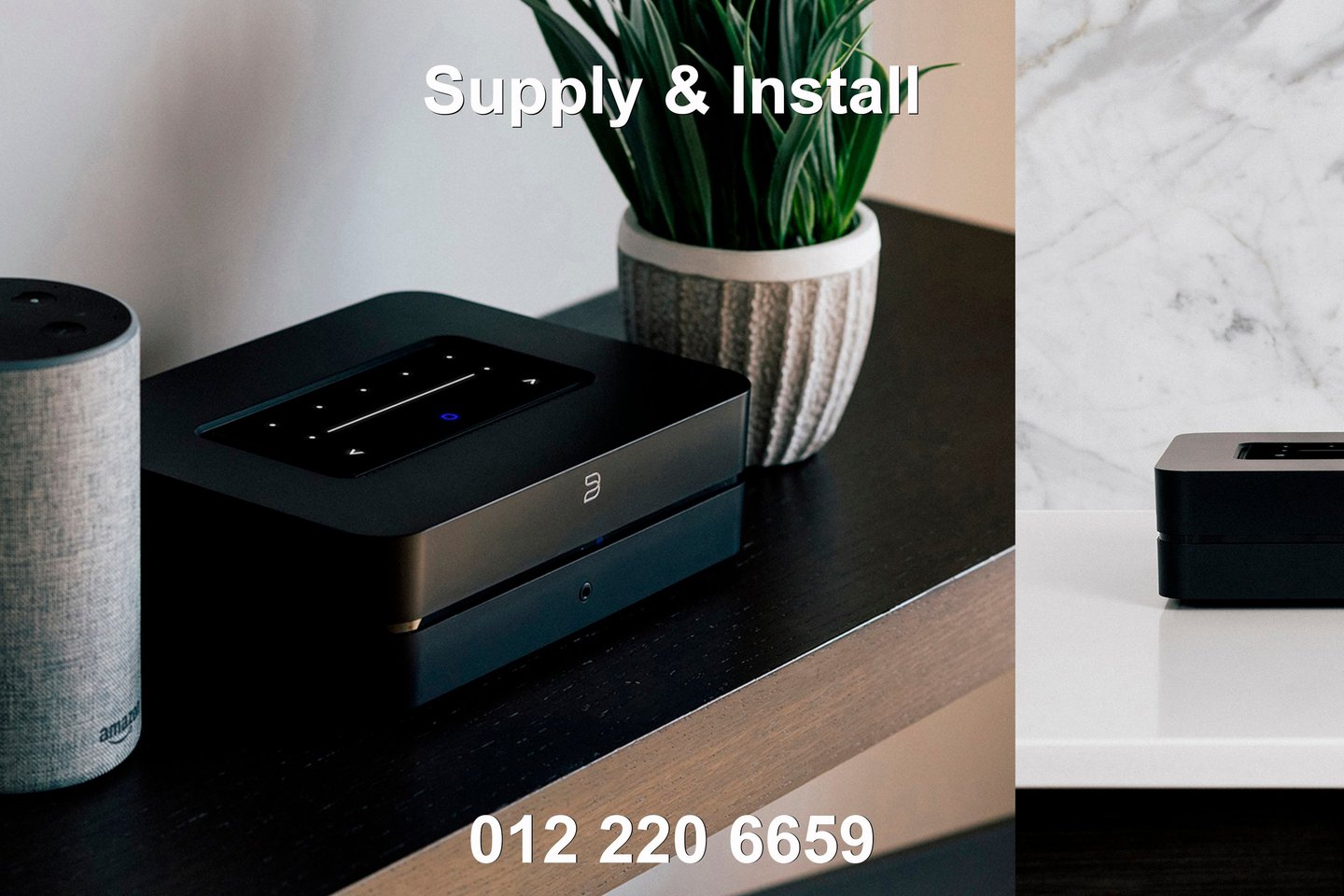

Bluesound PowerNODE
The Bluesound Powernode is a streaming amplifier that combines a network streamer, DAC, and power amplifier into a single compact chassis
Combining the Bluesound Powernode with Ostom IC640T in ceiling speakers delivers a premium, minimalist single zone background music system. By integrating a high-resolution streamer and an amplifier into a single compact chassis, this setup removes the need for bulky equipment racks while a few taps on an iPad offer high-fidelity audio control through the BluOS app.
The standard Bluesound Powernode delivers 80 watts per channel, providing plenty of clean headroom to drive architectural speakers smoothly without distortion.
Because the Powernode is a traditional low-impedance hi-fi amplifier, you must set the physical rotary switch on the Ostom IC640T speakers strictly to the 8Ω (8-ohm) position. Do not use the 70V/100V transformer taps, as they are not compatible with this amplifier.
1 speaker on the Left channel, 1 speaker on the Right channel (8-ohm stable load). Ideal for standard rectangular rooms.
Commercial 100V ceiling systems often sound thin and tinny at low volumes. Bypassing the transformers and driving the Ostom IC640T directly at 8 ohms allows the Powernode to deliver an authentic hi-fi sound signature. Even at whisper-quiet background levels, the music retains a warm, full-bodied mid-bass foundation.
Excellent Vocal Legibility: Midrange frequencies are rendered cleanly, meaning vocals, acoustic instruments, or background podcasts remain perfectly clear and intelligible throughout the room without needing to raise the volume to disruptive levels.
Non-Fatiguing Highs: Designed for long-duration listening, the Powernode's premium internal DAC rounds off harsh high-frequency transients. Paired with the Ostom's coaxial tweeters, the top end sounds crisp yet entirely relaxed, preventing any listener fatigue during 8-to-12-hour continuous playback sessions.

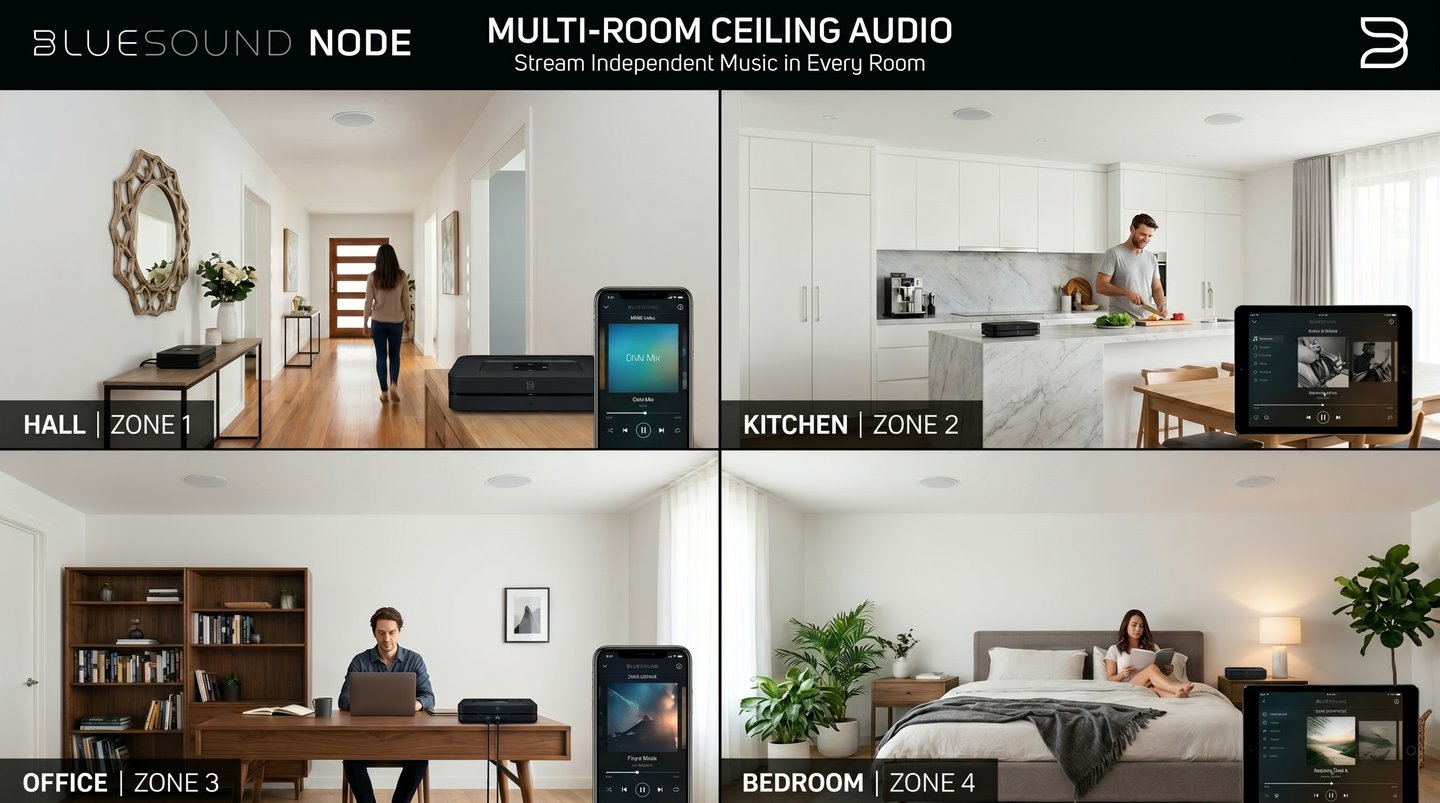

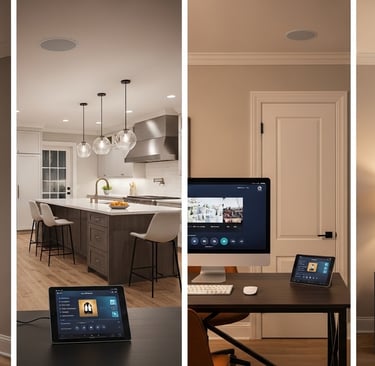

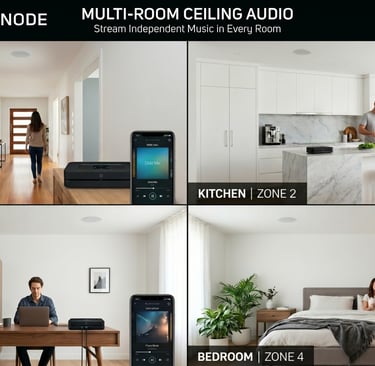

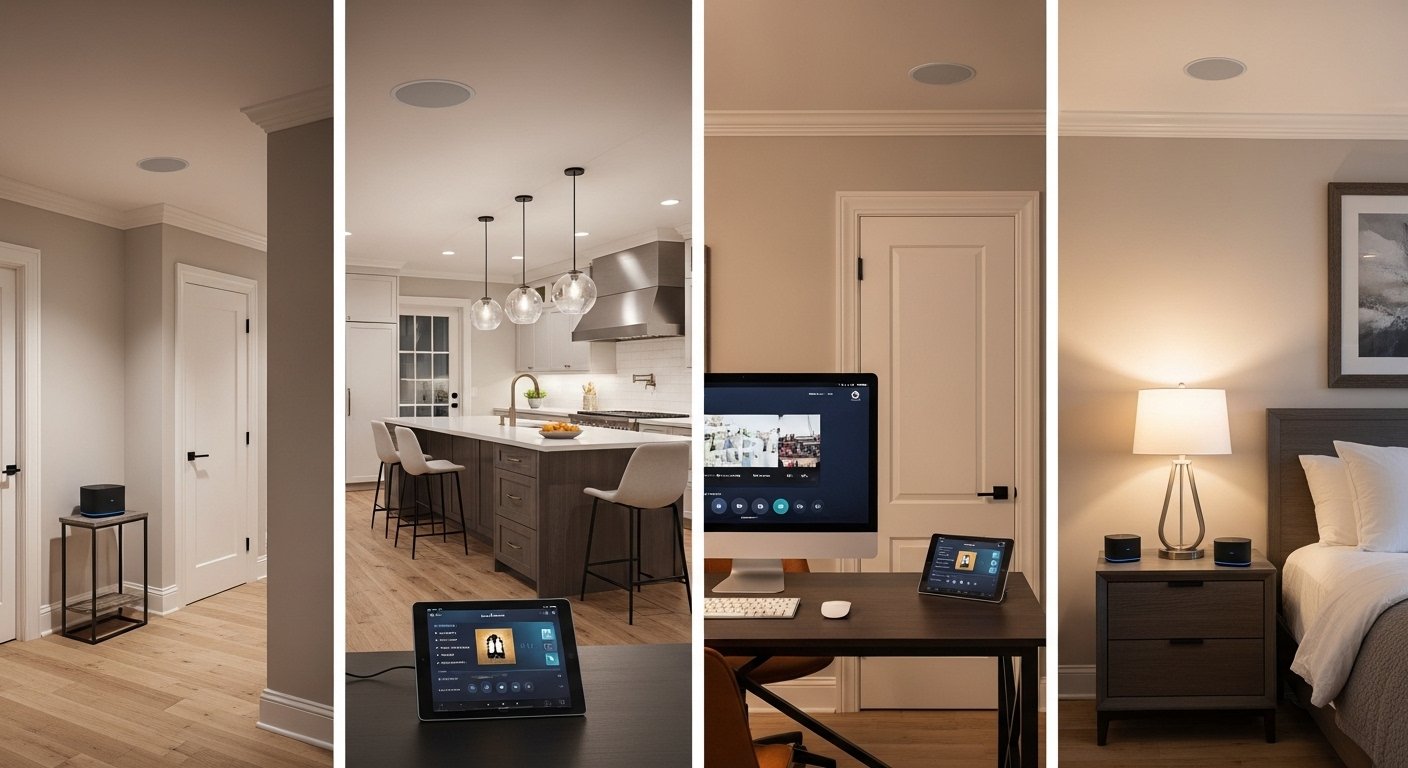

To build this exact whole-home audio setup using only the 80W Bluesound Powernode for every single zone, you will deploy a total of five Powernode units to manage your 6 zones. This approach ensures maximum power delivery, exceptional bass response, and identical app functionality across your entire home.
Here is how you will wire and configure your five Bluesound Powernodes to safely run all of your Ostom IC640T speakers:
Zone 1: Living Hall & Dining (1x Powernode + 4 Speakers)
You will place two speakers in the Living Hall and two speakers in the Dining area. To wire this, connect two speakers in parallel to the Left channel terminal and two speakers in parallel to the Right channel terminal. This creates a 4-ohm electrical load per channel. The Powernode handles this heavy current load comfortably, delivering roughly 130W of total output to provide perfectly even, rich acoustic coverage across your main open-plan entertaining space.
Zone 2: Kitchen (1x Powernode + 2 Speakers)
You will place two speakers overhead in your cooking and prep space. Wire one speaker directly to the Left channel and one speaker directly to the Right channel. This configuration runs at a standard 8-ohm load, allowing the Powernode's 80W output to deliver dynamic, high-fidelity sound that easily cuts through ambient kitchen noise like sizzling pans or running water.
Zone 3: Master Room (1x Powernode + 2 Speakers)
You will position two speakers in the ceiling above your bed or dressing area. Wire them in standard stereo (one speaker to the Left terminal, one to the Right terminal) for a clean 8-ohm load. This dedicated amplifier gives you independent, private control over your bedroom audio, allowing for a warm and relaxing soundstage at night or a crisp morning alarm playlist.
Zone 4: SOHO / Home Office (1x Powernode + 2 Speakers)
You will mount two speakers in your workspace, wired in standard stereo (one Left, one Right) at an 8-ohm load. Powered by its own dedicated Powernode, this zone allows you to mute or adjust office music instantly when taking phone calls or Zoom meetings, without affecting the music playing in the rest of the house.
Zone 5: Smaller Room 1 (1x Powernode + 1 or 2 Speakers)
This bedroom gets its own dedicated Powernode. If you are installing one speaker, wire it directly to the Left channel terminal. Because this is a single speaker running on a stereo amplifier, you can go into the BluOS App settings for this specific room and switch the audio output from "Stereo" to "Mono." This ensures the speaker combines both audio channels so you don't miss any left-or-right sound details. If you prefer a full stereo field, you can install two speakers wired normally (one Left, one Right) at an 8-ohm load.
Zone 6: Smaller Room 2 (1x Powernode + 1 or 2 Speakers)
Just like Room 1, this space is powered by its own discrete Powernode. Wiring a single speaker to the Left channel and toggling the Mono mode setting in the app gives the occupant complete autonomy. They can play their own music, podcasts, or streaming radio at any volume they like without affecting any other room in the house.
Every single room can now play completely different music at the same time, or they can all still be grouped together instantly with a few taps on an iPad. The result of deploying 6 dedicated Bluesound Powernodes across your entire home transforms your living space into an acoustic masterpiece, elevating day-to-day living from simple background noise to a highly tailored, seamless luxury audio environment. Imagine waking up in the Master Room to a soft acoustic playlist that gradually fades in, and as you move to the Kitchen to make coffee, a simple tap on your phone instantly transfers that exact stream to the culinary zone, while the SOHO Home Office remains perfectly silent for an early morning business call. Because the three smaller bedrooms operate as three completely independent zones, your household completely eliminates volume wars; a guest in the first room can stream an educational podcast, the occupant of the second room can blast a high-energy workout playlist via Spotify Connect, and someone in the third room can enjoy a quiet lo-fi stream while studying, all without ever accidentally interrupting the audio playing in the main living spaces.
When it is time to host a dinner party or a family gathering, the entertaining experience becomes truly spectacular as you open the BluOS App and engage Party Mode to link all seven Powernodes together instantly. As your guests move naturally from the Living Hall through the Dining area, grab a drink in the Kitchen, and drift down the hallways, the music follows them flawlessly with absolutely zero echo, lag, or phase delay because every single space is driven by its own high-current 80W amplifier directly powering the Ostom IC640T speakers at low impedance. This premium architecture leaves your home entirely free of visual clutter—with no bulky speaker boxes or messy wires tracking down walls, only the clean, flush grilles of the architectural speakers overhead—while the highly stable BluOS platform ensures that grouping zones, tweaking individual room EQs, or utilizing the FollowMe capability happens with instant, lag-free responsiveness that remains future-proof for advanced smart-home integration.
Wilayah AV Solutions is the authorized premium custom install dealer for Bluesound. Contact us today to discuss your project.

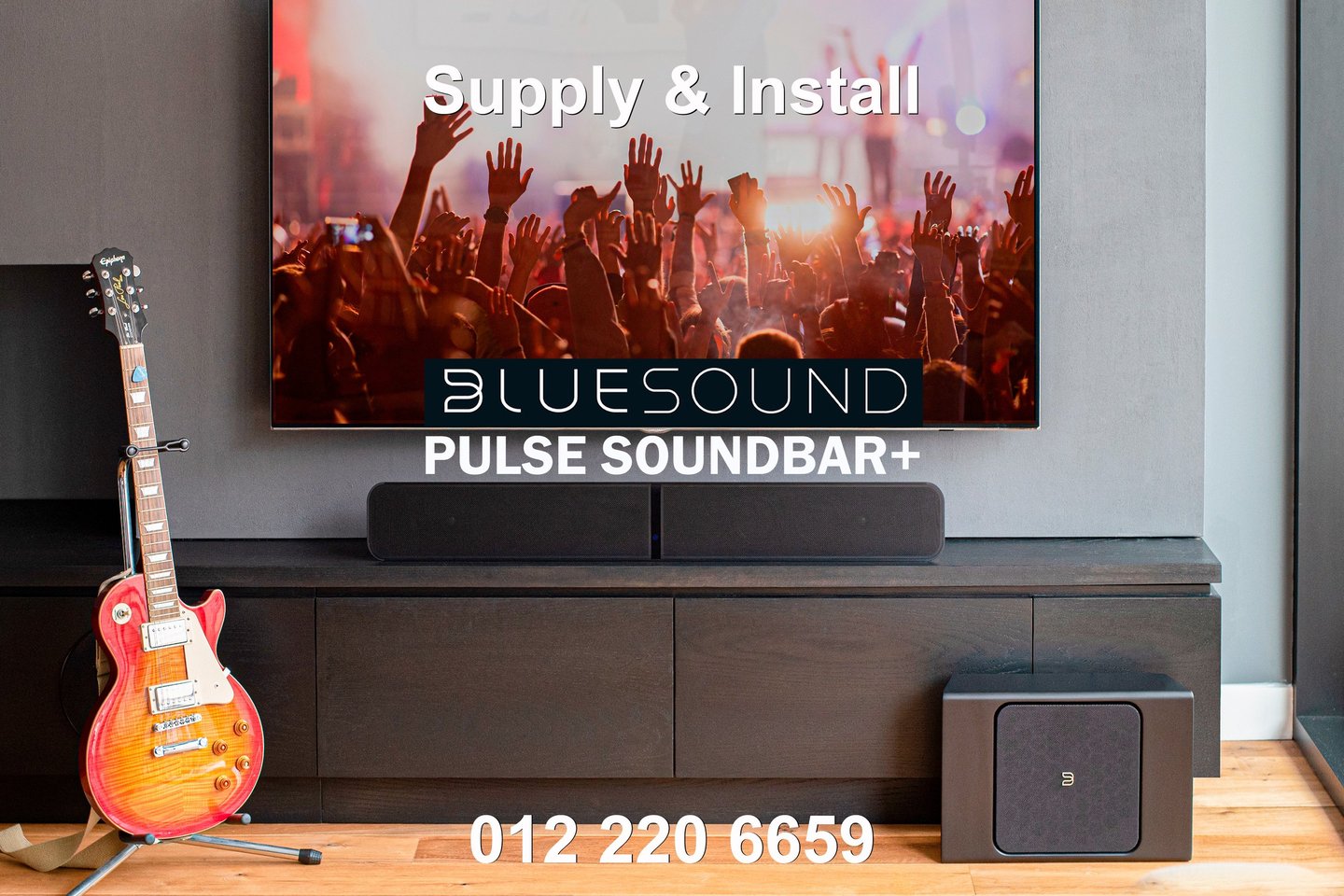

Bluesound Pulse Cinema
The Bluesound Pulse Cinema is a high-end, 500-watt Dolby Atmos wireless soundbar engineered for premium home theater performance and high-resolution audiophile streaming. It features an advanced 3.2.2-channel configuration packed with 16 distinct drivers, delivering deep, spatial audio without requiring a separate subwoofer out of the box. Driven by a quad-core processor and multi-channel Class D amplification, it integrates natively into the BluOS ecosystem, allowing for seamless multi-room streaming, Apple AirPlay 2, and high-res playback up to 24-bit/192kHz. While it lacks native DTS:X support, its exceptional physical connectivity—including HDMI eARC, optical, and analog RCA inputs—and its ability to wirelessly pair with other Bluesound speakers for an expanded surround sound setup make it a powerful, versatile hub for modern home entertainment.
Bluesound NODE Icon
The Node Icon has been honored with the CES Innovation Award. A testament to our commitment to innovation and exceptional sound quality. Here’s to pushing boundaries in audio! The NAD Node Icon is a streaming amplifier that merges cutting-edge technology with minimalist design, offering a seamless audio experience for modern music enthusiasts. Designed to appeal to audiophiles and casual listeners alike, this compact device combines high-quality amplification, robust streaming capabilities, and intuitive usability in one sleek package. The build quality of the NAD Node Icon is excellent, with a solid aluminum chassis that exudes durability and sophistication. Its modern aesthetic blends well with contemporary home setups, featuring a bright, full-color front display.
This screen not only enhances the unit’s visual appeal but also provides essential playback and system information at a glance, offering a user-friendly interface. Under the hood, the NAD Node Icon is equipped with HybridDigital UcD amplification technology, delivering a clean and dynamic sound output of 80 watts per channel into 8 ohms. This makes it powerful enough to drive a variety of speakers while maintaining excellent control over audio performance. The tonal balance is neutral, with precise imaging, rich detail, and a tight bass response, making it suitable for a wide range of music genres. The streaming capabilities are another standout feature of the Node Icon.
It supports the BluOS platform, which offers a vast range of streaming services, multi-room audio capabilities, and hi-res audio support up to 24-bit/192kHz. It’s also compatible with Tidal, Spotify, Qobuz, and more, while supporting Apple AirPlay 2 and aptX HD Bluetooth for versatile connectivity. Roon Ready certification further enhances its appeal for audiophiles with extensive digital libraries. Setting up and controlling the device is straightforward, thanks to the BluOS app, which is highly intuitive and provides extensive customization options. The app allows users to fine-tune audio settings, manage multi-room setups, and easily access music libraries. For those who prefer traditional controls, the included remote and physical buttons on the unit are well-designed and responsive. The NAD Node Icon also includes a range of physical connections, including HDMI eARC for seamless integration with TVs, analog and digital inputs, and a subwoofer output for added versatility. However, the lack of a phono stage might be a drawback for vinyl enthusiasts who want to connect turntables directly. One of the few criticisms of the Node Icon is its price point, which may feel steep for some users compared to competitors. While the sound quality and features justify the cost for many, budget-conscious buyers might find alternatives with similar functionality at a lower price. Overall, the NAD Node Icon is a premium streaming amplifier that delivers exceptional sound quality, versatile streaming options, and modern aesthetics. Its combination of cutting-edge technology and user-friendly design makes it an excellent choice for anyone looking to upgrade their audio system with a high-performance, all-in-one solution.

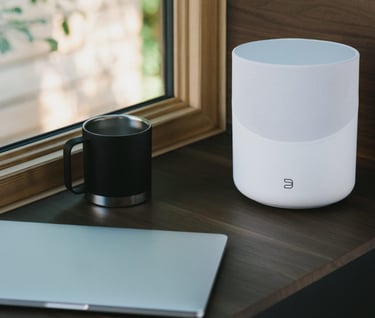

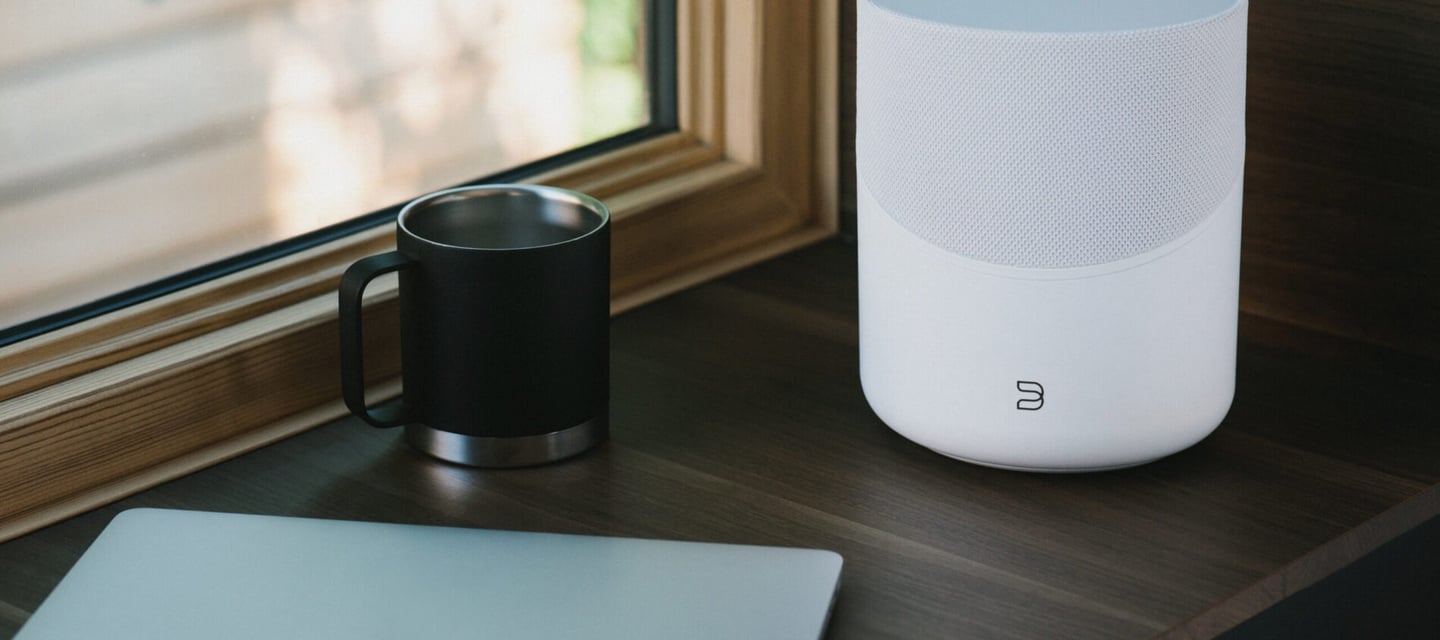

Bluesound Pulse M
Wanna cast your music to the kitchen? ... Sure!
The Bluesound PULSE M takes the sight and sound of Hi-Fi enjoyment to new horizons with its unique Omni-Hybrid™ driver design and contemporary aesthetic
